Arid Bilge Systems Series 2
Choose 2 or 3 Intakes
$1,995.00 – $2,995.00Price range: $1,995.00 through $2,995.00
Arid Bilge is a central vacuum system that automatically and effortlessly maintains bilge compartments throughout the vessel 100% dusty dry.
Series 2 is an automatic residual-bilge-water removal system with two or three independently controlled intake ports (zones). Choose standard solenoid valves or Premium Intake Valves. The current unit accepts 12 or 24 volt DC power.
Should I choose two zones or three?
Count the separate low points where water collects, not just the length of your boat. Plan a pickup for each wet area you need to serve. If the layout needs more than three zones, compare the Arid system range or ask Arid to review your wet-area layout before ordering.
What should I check before installation?
The central unit must stay upright and out of the wet bilge; it is not waterproof. Check mounting space, intake tubing, discharge routing and power against the correct manual. For the indicator-LED model, each finished intake line must be 20–50 feet long; keep excess tubing coiled rather than cutting it below the minimum.
Does Series 2 replace my bilge pump?
No. Keep conventional bilge pumps and alarms operational. Series 2 addresses residual water at connected pickup locations, not emergency flooding. Read why bilge pumps can leave water behind and how Arid collects and discharges that water.
A drier bilge reduces one source of onboard moisture and can make new wet trails easier to notice. It does not repair leaks, remove existing contamination, or guarantee freedom from odor, mold or corrosion. Continue routine inspection, cleaning and ventilation.
Choose the manual that matches your unit
Check whether your Series 2 has indicator LEDs before choosing a manual below. Older units can have different requirements; do not apply the current model’s instructions to an older unit without checking. Visit Owners’ Central for installation videos and support.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Height | 11.75 inches / 30 centimeters |
| Box width | 5.75 inches / 14.5 centimeters |
| Depth | 7 inches / 17.5 centimeters |
| Box dry weight | 8 pounds / 3.75 kilograms |
| Intake tubing | 5/32” Polyethylene tubing, 100 feet provided |
| Unit Maximum Expected Flow Rate | 3.5 US gallons / 14 liters per hour |
| Power draw | 0.07 amp (70 milliamps) average standby draw, 0.7 amp average run draw @ 12 volt DC w/ 1 active zone |
| Certifications | This unit meets USCG 33CFR 183.410 ignition protection |
| Discharge port | Single point discharge port – 1/2" barbed fitting. |
| Limited warranty | One year parts and labor. |
| Available Upgrades | Standard Solenoid Valves, Premium Intake Valves |
| Bilge pickup options | Mini Standard (most popular) for flat bottoms, offset for a light V bottom, wand for a sharper V bottom. One pickup of your choice is included for each zone plus one spare. |
| Zones Type | Zones 2 or 3 independently controlled intakes |
| Power | Accepts 12 volt DC or 24 volt DC input power. |

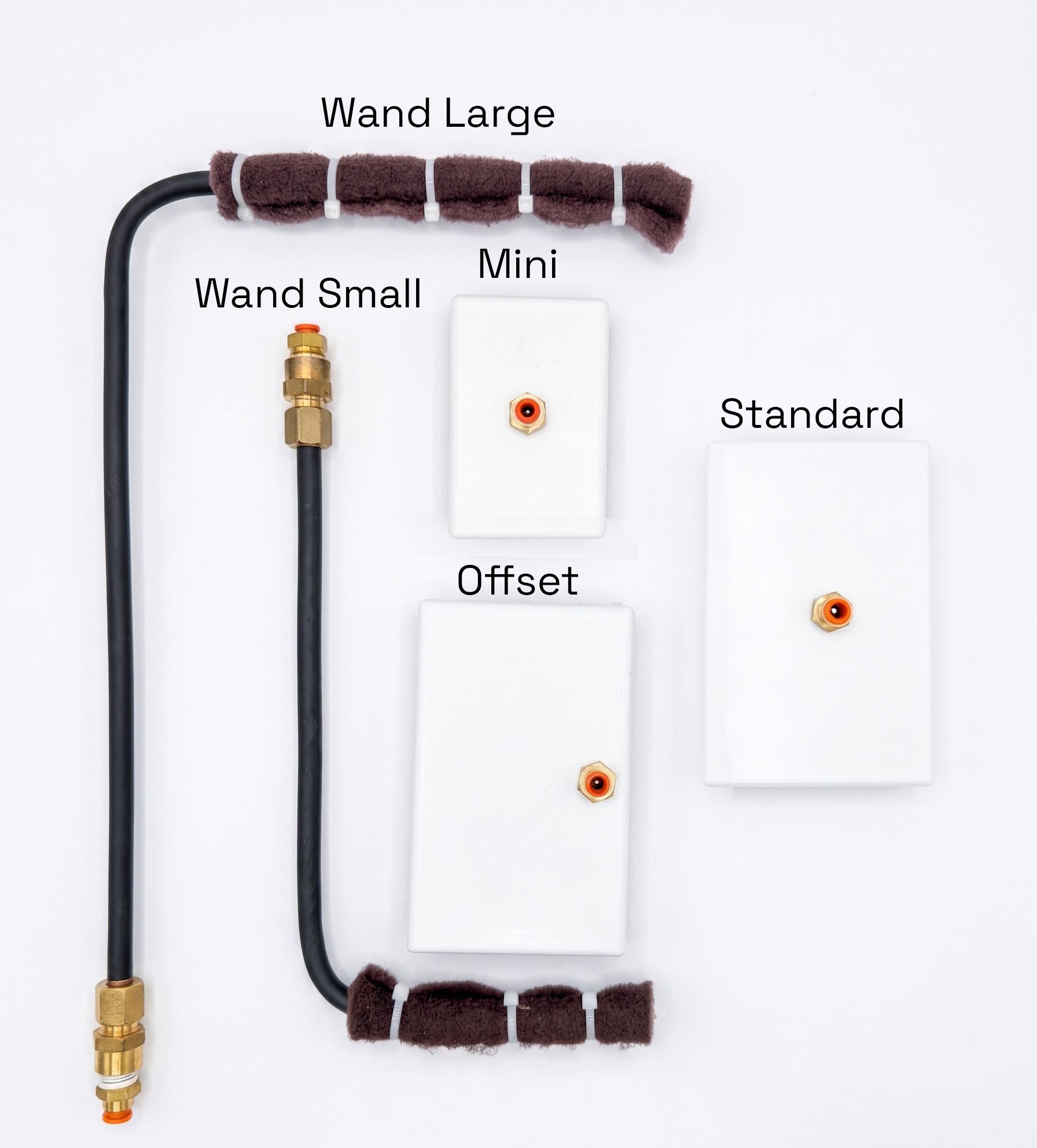

Pickups
There are 3 pickup styles available for the Series 2.
All pickup styles have filter pads underneath which prevent debris from transiting into the intake tubing.
The pickups are not prone to clogging. See our bilge pickup inspection and cleaning guide for maintenance details.
| Pickup Type | Description | Dimensions | Picture |
|---|---|---|---|
| Mini Standard Pickup | Use this on a flat-bottomed compartment. Typically placed near the aft bilge pump. This is our most popular pickup style with a variety of applications. |
2″x3″ |  |
| Offset Pickup | Use this in a V-shaped compartment (up to a 45° angle). Typically placed in the bow of the vessel or aft under the engines where the bottom of the bilge is angled. |
2.75″x4.25″ |  |
| Small Pickup Wand | Use this flexible tube in tight areas. Typically used in A.C. drip pans, near limber holes, under a bilge pump leveling platform, or in other narrow deep pockets that collect fluid. Popular in older boats, wooden boats, or custom boats. |
0.5″x4.75″ (bottom pad) |  |
