Hydrocarbon Notifier option for all Eco units
Simple alarm that notifies the user that acceptable oil levels have been exceeded inside the Eco Friendly Discharge Companion. This box is generally mounted right on the Eco Friendly Discharge Companion I, II or III. It comes pre-wired to the probe that’s mounted inside the Eco Friendly. You can order this alarm in 12 or 24 volt DC versions and will only have to provide power to the attached two conductor cable.
Weight | 3 lbs |
---|---|
Dimensions | 7 × 6 × 6 in |
Height | 2.25 inches / 6 cm |
Width | 5.1 inches / 13 cm |
Depth | 5 inches / 12 cm |
Weight | Less than 1 lbs |
Main unit material | Plastic |
Power requirements | Order 12 or 24 volt versions |
Standards and certifications | none as a stand alone system |

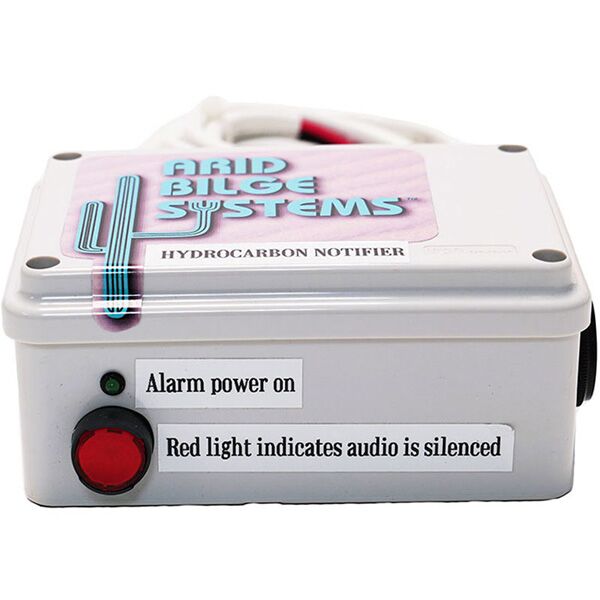

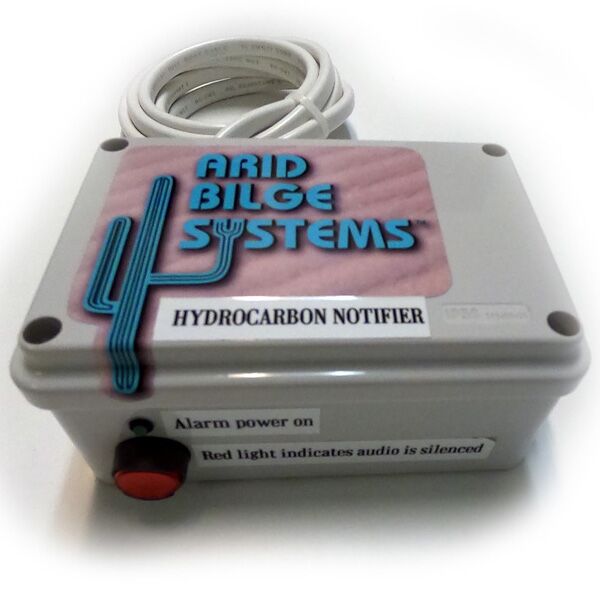

Normal Operation | Green Alarm power on light remains lit |
Alarm Operation | Audio piezo buzzer sounds, pressing the red button silences the buzzer and lights the large red indicator light |
To restore operation | Drain some of the oil from the Eco Friendly so that the probes are touching water, do not drain too much as contact with air will also cause the alarm to sound as well |
